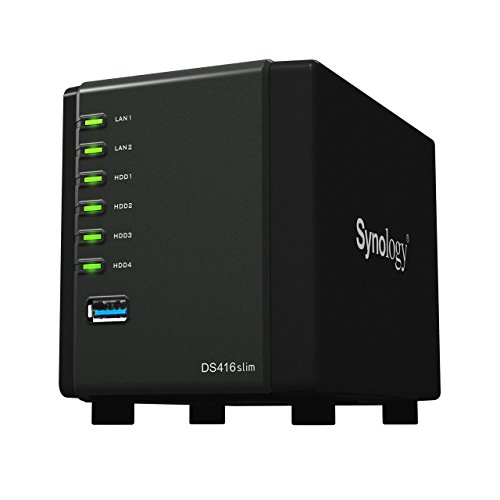

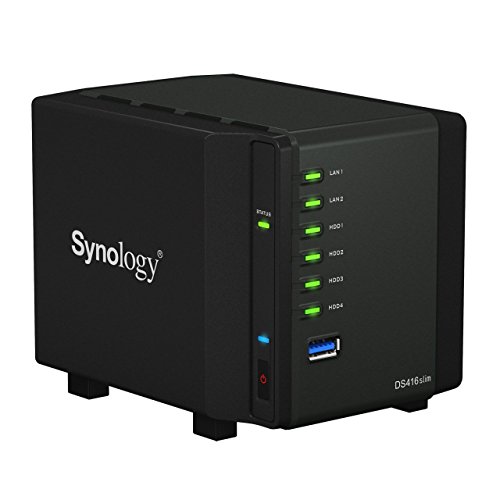

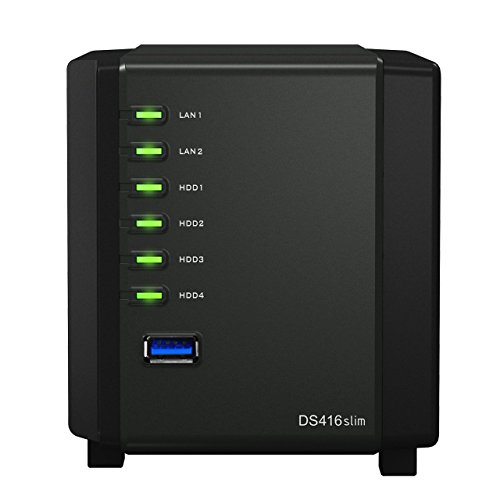

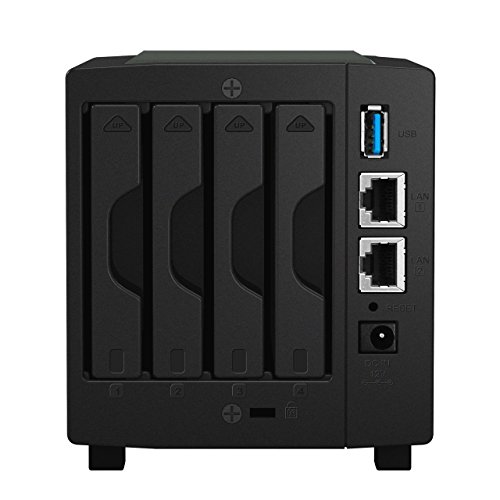

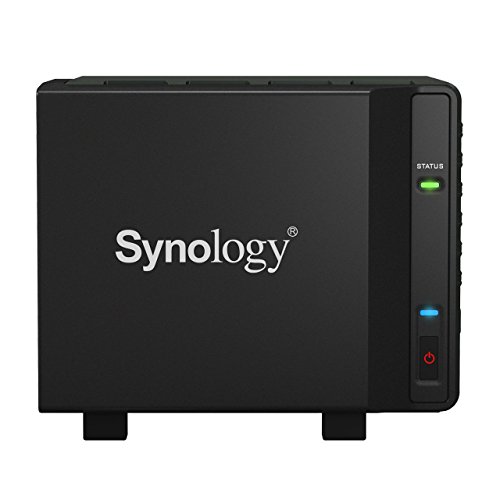

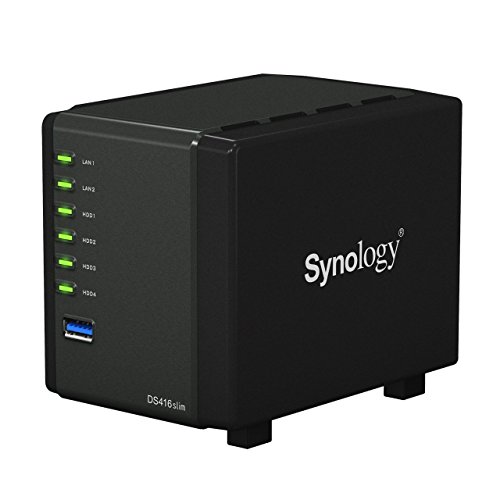

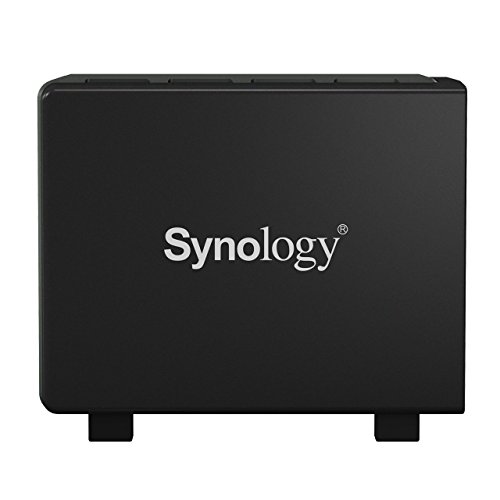

Synology DS416slim Compact 4-Bay NAS w/2.5″ Bays, Dual-core 1.0GHz, DS416SLIM (w/2.5 Bays, Dual-core 1.0GHz, 512 DDR3, 2xUSB3 & 2xGigabit)



Specifications Mfr Part Number: DS416SLIM Hardware: CPU: Marvell Armada 385 88F6820 Dual Core 1.0GHz w/ Floating Point & Hardware Encryption Engine Memory: 512MB DDR3 Drive Bay: 4x 2.5″ SATA3/SATA2 HDD/SSD Max Internal Capacity: 8TB (4x 2TB HDD) (Capacity may vary by RAID types) External HDD Interface: 2x USB 3.0 Ports LAN: 2x Gigabit Ethernet RJ45 Ports (Wireless Support – dongle) Wake on LAN/WAN Fan: 1x (60 x 60mm) Fan Noise Level: 20.3 dB(A) Easy Replacement System Fan Brightness Adjustable Front LED Indicators Power Recovery Scheduled Power On/Off Power Supply Unit/Adapter: 30W AC Input Power Voltage: 100 ~ 240 V AC Power Frequency: 50/60Hz, Single Phase Networking Protocols: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) Security: FTP over SSL/TLS, IP Auto-Block, Firewall, Encrypted Network Backup over Rsync, HTTPS Connection File System: Internal: EXT4 External Drives: EXT4, EXT3, FAT, NTFS, HFS+ (Read Only, with max. volume size 2TB) File Sharing: Max User Accounts: 2048 Max Groups: 256 Max Shared Folder: 256 Max Shared Folder Sync Tasks: 2 Max Concurrent CIFS/ AFP/ FTP Connections: 128 Windows Access Control List (ACL) Integration NFS Kerberos Authentication Utilities: Synology Assistant Applications: File Station: Virtual Drive, Remote Folder, Windows ACL Editor, Compress/Extract Archived Files, Bandwidth Control for Specific Users or Groups, Create Sharing Links, Transfer Logs FTP Server: Bandwidth Control for TCP Connections, Custom FTP Passive Port Range, Anonymous FTP, FTP SSL/TLS and SFTP Protocols, Boot over the Network with  TFTP and PXE Support, Tansfer Logs Mail Server: Supported Mail Server Protocols – POP3, SMTP, IMAP, support LDAP/AD accout Windows Phone Applications: DS file, DS finder, DS audio, DS download, DS photo, DS video iOS/Android Applications: DS cloud, DS file, D

Additional information

Aspect Ratio



Catalog Number List


EAN List

Item Dimensions





Package Dimensions

Package Quantity

Part Number


Product Group

Product Type Name




UPC List
