PCS PulseWorx UPB Output Control Module (OCM)

Amazon.com Price: $114.86 (as of 01/01/2024 13:35 PST- Details)

Categories: ,

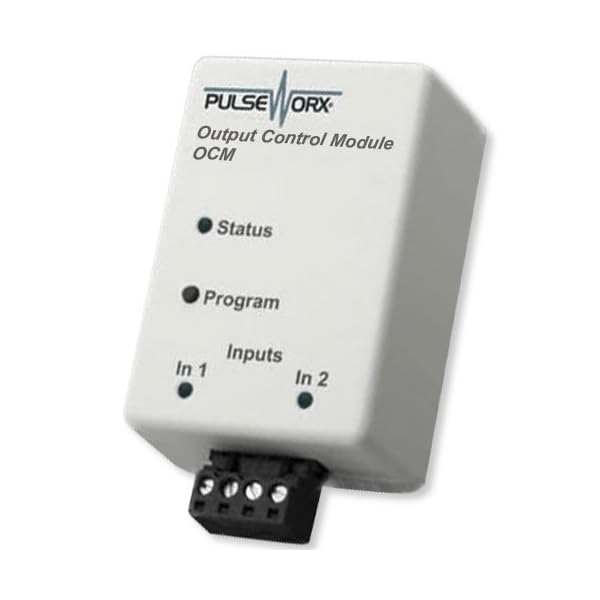

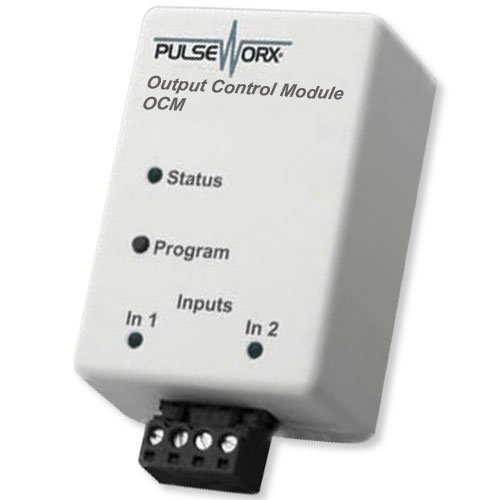

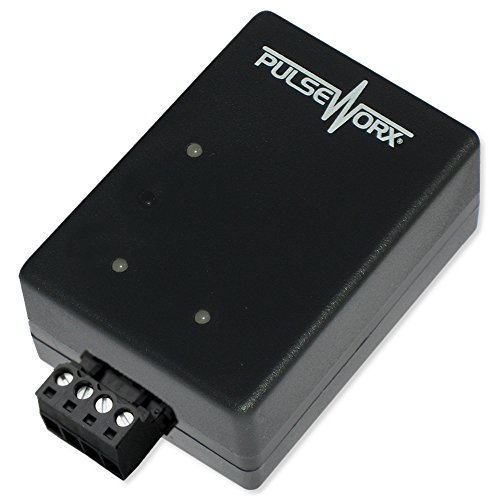

The OCM Output Control Module is a plug-in home automation isolated relay contact controller that transmits and receives UPB commands and status over existing power lines. The OCM is perfect for controlling valves, gates, garage doors, gas fireplaces, pumps, a large high voltage contactor and any device that is controlled by a relay. Simply plug the OCM into any standard wall outlet and wire the device to the controlled relay. The OCM is designed in a white enclosure with two completely isolated Class 2 contacts rated at 8 Amps. A mounting tab is included at the top to be screwed into the receptacle for added security. The OCM will accept powerline commands from any UPB-compatible transmitter such as the PulseWorx Keypad Controllers, Timed Event Controller, Interface Modules, Approved Third-Party Controllers, Touch Screens, and WS1s. Each channel of the OCM can be a member of up to 16 Links/Scenes with the capability to store a pre-set relay state (OPEN or CLOSE). Each preset state can easily be adjusted by the homeowner using the innovative PulseWorx manual programming method. Each channel output can be configured to transmit status changes and inform the rest of the network when the timed auto-off function has automatically turned each relay off. This allows the OCM to remotely control other devices or update indicators (LEDs on our keypads). Like all PulseWorx devices, the OCM can be initially configured using PCS’s free UPStart Setup Software tool. UPStart enables configuring such parameters as Network Name, Network ID, Unit ID, Room name, Device name, default on light levels, fade rates, LED colors, dimming disable, auto shut-off time, etc. as well as test the operation and communication strength of the device. UPStart has the option to configure an entire network off-line and then download the information into the devices after they are installed in the home.
Home automation isolated relay contact controller
Transmits and receives UPB commands
Supports any device controlled by a relay
Perfect for controlling valves, gates, garage doors, gas fireplaces, etc.
Plugs into any standard wall outlet

Additional information




EAN List

Item Dimensions





Package Dimensions

Package Quantity

Part Number

Product Group

Product Type Name




UPC List
